Can I rotate a drawing in Procore?

Answer

Yes! If you are in the process of reviewing and confirming drawings and notice that a drawing is not in the correct orientation, you can rotate the PDF before confirming the drawing. See Review and Confirm Drawings.

Notes:

  • You can rotate the drawing as many times as you want, however once the drawing is confirmed, you will not be able to rotate it again.

  • Only one drawing can be rotated at a time.

To rotate a drawing, follow the steps listed below:

  1. On the drawing review page, click Rotate Drawing.

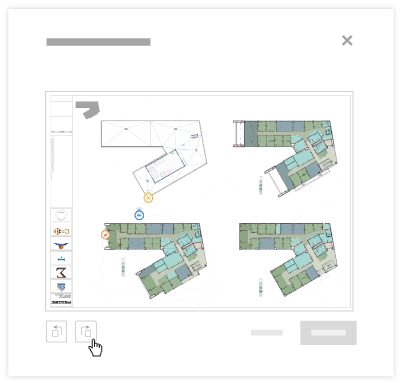

  2. Click the clockwise or counter-clockwise rotate icons to rotate the drawing to the desired position. You can click the rotate icons as many times as you want.

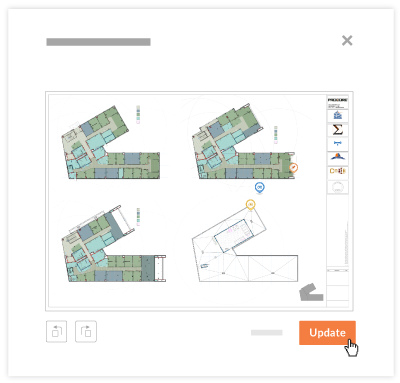

  3. Click Update.
    Note: You will see a loading icon while the drawing rotation is being processed, and it will disappear once the drawing is rotated.


  4. Review the rest of the drawing information is accurate, then click Confirm.
