Create Your Project's Work Breakdown Structure

To adjust your company's Work Breakdown Structure (WBS) for a Procore project.

After creating a new project in your company's Procore account, you can use the built-in WBS features to define the cost structure for Procore's Project Financials tools. When defining a project's WBS cost structure, you have two choices. If you are unsure which choice to make, contact your company's Procore Administrator for guidance:

• Apply your Company's Default WBS
  This is the WBS defined by your company's Procore Administrator and you can use it exactly as it was created.

• Copy the WBS from Another Project
  This is the WBS defined on one of your existing Procore project templates. Keep in mind that you can create a unique WBS for each project in your company's account. In order to copy the WBS from another source project to your new target project, you must first save the source project as a project template. See Configure a Project Template.

• Required User Permissions:

  • 'Admin' level permissions on the Project level Admin tool.

• Additional Information:

  • The Project level 'Work Breakdown Structure' page is similar to the Company level page. The primary differences are:* You cannot add custom segments at the Project level. They must always be added at the Company level. See Add Custom Segments.* You cannot edit the budget code structure at the Project level. The budget code structure is always defined at the Company level. See Arrange the Company Budget Code Structure.* You cannot add sub jobs at the Company level. Sub jobs are always added at the Project level. See Enable Sub Jobs on Projects for WBS and Add Sub Jobs to a Project.

• Limitations:

  • For customers using the Company level ERP Integrations tool
    The default segments in WBS are compatible with Procore's ERP Integrations tool. However, some integrations do NOT yet support custom segments. To learn more, see Things to Know about your ERP Integration.

  • For customers who have independently developed or purchased a third-party solution to integrate with Procore
    To take advantage of the custom segment capabilities associated with WBS, any existing API integrations that you have independently developed or purchased to interact with Procore must be updated to support Procore's new WBS API.

• Create Your Company's Default Work Breakdown Structure

1. Navigate to the Project level Admin tool.

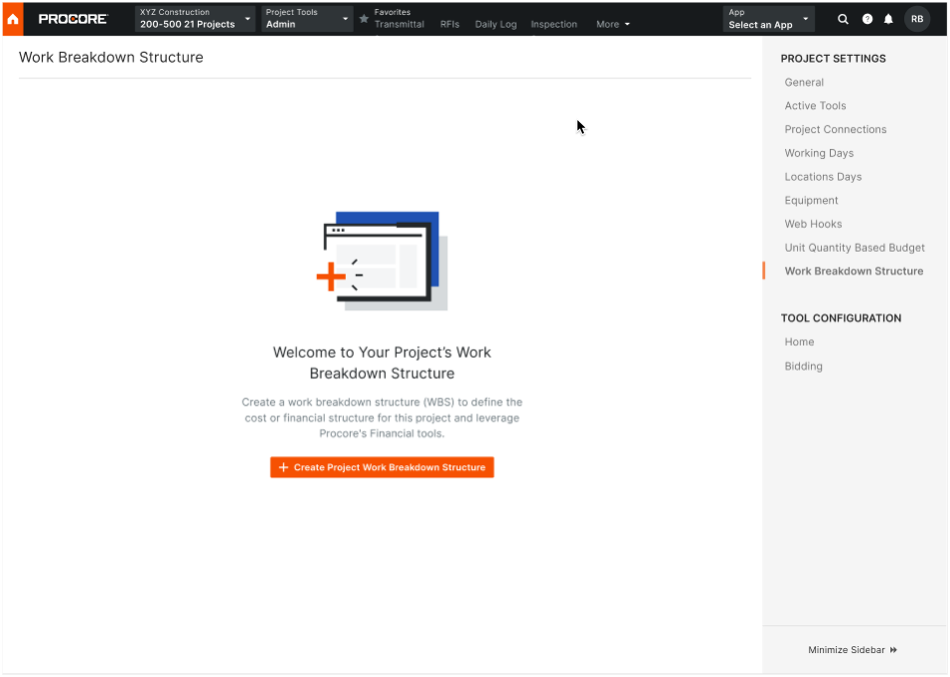

2. Under 'Project Settings', click the Work Breakdown Structure link.




3. Review the information about WBS, Budget Codes, Budget Code Segments in the dialog box sequence. Click Next.

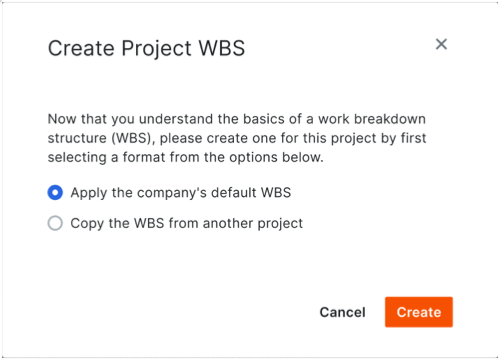

4. In the 'Create Project WBS dialog box, choose one of these optons:

   • Apply the Company's Default WBS
     Choose this option button if you want the project to use your company's default WBS. Your company's Procore Administrator is responsible for creating this structure.

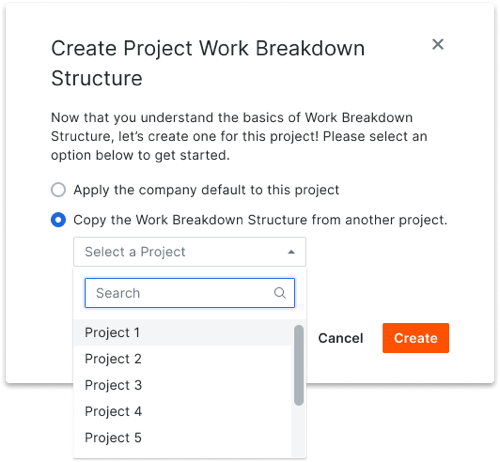

   • Copy the WBS from Another Project
     Choose this option button if you want to use an existing project's WBS. Then, start typing a project name and when the match appears, choose it in Select a Project list.



5. Click Create.

• Add Custom Segments to the Project Budget Code Structure

• Arrange the Company Budget Code Structure
