Link Items to a Drawing (Android)

Objective

To link items to drawings in the project's Drawings tool on your Android mobile device.

Things to Consider

  • Required User Permissions:

    • 'Standard' or 'Admin' permissions on the Drawings tool.

  • Additional Information:

    • This asset/item can be viewed or edited in offline mode provided that the asset/item was previously viewed and cached on your mobile device.

Steps

  1. Navigate to the project's Drawings tool using the Procore app on an Android mobile device.

  2. Tap the drawing you want to link an item to. See Search for and Filter Drawings (Android).

  3. Tap one of the following tools from the markup toolbar:

    • Pen

    • Line

    • Box

    • Cloud

    • Text

  4. Use your selected tool to draw a shape or enter text to your drawing. See Markup a Drawing (Android).

  5. Tap the markup you added.

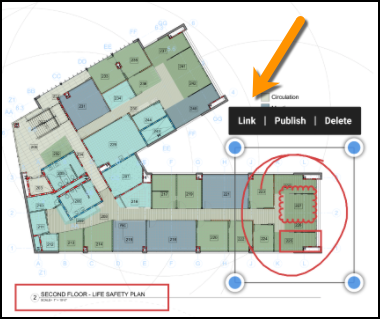

  6. Tap Link.


  7. Tap the type of item you want to link to the drawing's markup from the following tools:

    • Correspondence: Tap to link an existing correspondence item.

    • RFIs: Tap to link to an existing RFI, or create a new RFI.

    • Submittals: Tap to link to an existing submittal.

    • Inspections: Tap to link to an existing inspection, or create a new inspection.

    • Observations: Tap to link to an existing observation, or create a new observation.

    • Documents: Tap to link to an existing document.

  8. Navigate to the item within the selected tool that you want to link to this markup.

  9. Tap the item you want to link to.
    Note: Markup changes are automatically saved.
